Material Only Hoist

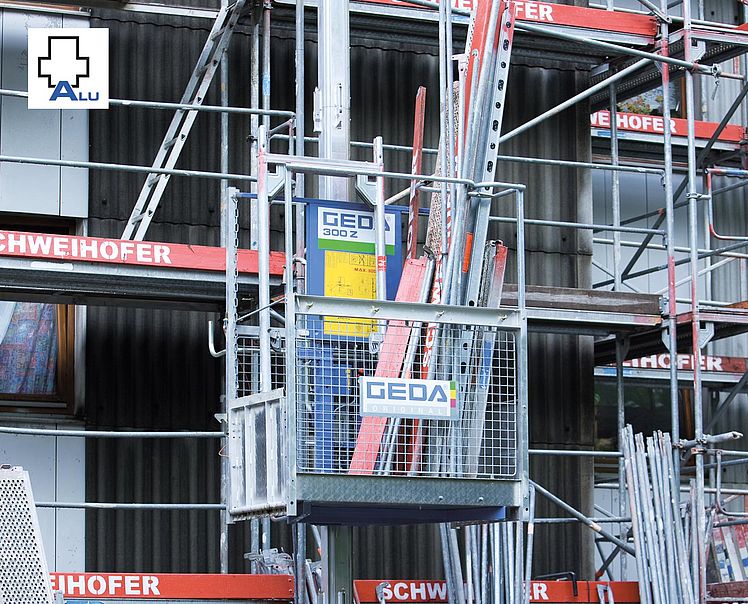

The GEDA 300 Z with its lightweight 2 metre aluminium mast segments has been used on building sites for various kinds of transport for many years. Its spacious load platform with a maximum capacity of 300kg up to a height of 50 metres makes it the ideal rental unit for permanent use on building sites.
GEDA 300 Z | |
Cargo | Material Only |
Load Capacity | 200KG |
Lifting Height | 35m |
Lifting Speed | 25 m/min |
Power Supply | 1.7 kW / 230 V / 50 Hz / 16 A |
Platform Dimension | 0.8 m x 1.4 m x 1.1 m |

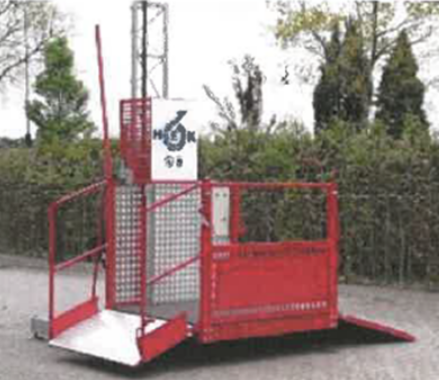

ALIMAK HEK GL 500S
ALIMAK HEK GL 500S | |
Cargo | Material Only |
Load Capacity | 500KG |
Lifting Height | 80m |
Lifting Speed | 24 m/min |
Power Supply | 4.8 kW / 400 V / 50 Hz / 16 A |
Platform Dimension | 1.30m x 1.50m |
GEDA 2000Z
GEDA 2000Z | |
Cargo | Material Only |
Load Capacity | 2000KG |
Lifting Height | 100m |
Lifting Speed | 24 m/min |
Power Supply | 415V/3 Phase/ 16amp |
Platform Dimension | 1.5m x 4.3m |
