ROPE HOIST/SCAFFOLDING HOIST
Rope Hoist/Scaffolding hoists are one of the most efficient yet safe ways of transporting scaffolding elements and construction material at the push of a button. Scaffolding/Rope hoists can be easily installed on to the side of a building on a telescopic frame, on to an overhead beam/gantry or can be tied on to scaffolding elements. With the use of a guided rope and various available load carrying device attachments, scaffold hoists can transport bulky scaffolding elements, loaded buckets or other building materials.
At Casey group we have a range of scaffolding/rope hoists that have varying capacities and applications, all available for hire or purchase. All our scaffolding/Rope hoists are supplied in 110v as per health and safety regulations in Ireland. Different voltage can be supplied upon request. Contact us today for a quote.
GEDA MAXI 120 S | |
Cargo | Material Only |
Load Capacity | 120KG |
Lifting Height | 70m |
Rope Length | 81m |
Lifting Speed | 20 m/min / 60 m/min |
Power Supply | 1 kW / 110 V / 50 Hz / 16 A |

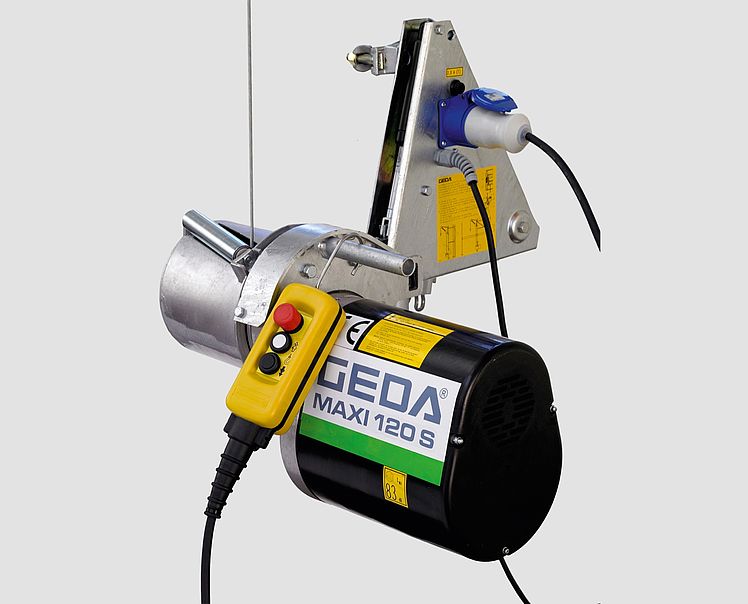

GEDA MAXI 120S:
The GEDA maxi 120s has a load capacity of 120kg, two lifting speeds, easy assembly and extensive safety features. The manual drive of the rope drum is not transported upwards, but simply fastened to the scaffolding at the bottom, while the lightweight swivel arm is attached at the top of the scaffold at the desired height. This even allows quick and easy relocation of the rope hoists during different construction phases. A broad selection of accessories and load handling devices turns the compact rope hoists into true all-round talents at construction sites.
IMER TR225N | |
Cargo | Material Only |
Load Capacity | 200KG |
Lifting Height | 30m |
Rope Length | 31m |
Lifting Speed | 19 m/min |
Power Supply | 0.75 kW / 110 V / 50 Hz |
IMER TR225N:
The IMER TR225N has a load capacity of 200kg and an extendable arm up to 1120mm. Trolley is available for use with a gantry. The TR225N has a range of safety features such as an upper limit safety device and self-breaking motor with magnetic device. The low noise level allows working without causing noise harmful to the operators health. The IMER TR225N comes with a range of load carrying devices and accessories to make it versatile and adaptable to a broad range of applications.
