Mast Climber
Mastclimbers also known as mast climbing work platforms (MCWP) are a very efficient and safe alternative to scaffolding to allow access to elevated work areas on building facades. Mastclimbers consist of a series of platforms that can be raised or lowered along vertical masts to
allow for easy access to various levels of a building or structure. As mastclimbers can carry both material and men, they are a very popular choice for installing windows, masonry work, performing
façade repairs and all other elevated work. The platforms can be installed with varying lengths to suit requirements and can be extended to create a twin mastclimber.
Casey Group has been one of the leading suppliers of mastclimbers in Ireland for over a decade. We have a team of skilled technicians that travel nationwide to provide onsite consultation to help you make the right decision for your project. Contact us now to set up a consultation or
receive a quote.
Scan Climber SC1000
A well-balanced, high quality mast climbing work platform which can be used for training purposes in training centres, or for light work at construction sites. Max Loading Capacity of 1300 kg (single) & 1700 kg (twin).
Max Jack load of 15kN. With a max. freestanding height (mast side outriggers fully open) of 6m. Transport weight 1800 kg (max at 10,1m platform & 1000 kg (min at 4,1m platform).
Safety features including, overspeed safety brake, emergency stop and limit switches, electromagnetic brake, phase sequency relay & residual current device.
Scan Climber SC3000
Luna SC3500L is a mid-weight mast climber working platform for sites with limited space. With a load capacity of up to 4300 kg, and a climbing rate of 9.5 meters per minute, it is the perfect tool for any facade work that requires light to medium lifting capacity whether for new construction or restoration.
THE ELECTRICALLY-DRIVEN Luna SC3500L mast climbing work platform is a middle weight lifting machine and a working platform all in one package. Designed for building and restoration projects where the operation space is scarce, required lifting capacity varies between 1 to 4 tonnes.
Scan Climber SC5000
Used during all kind of works: assembly, finishing, cladding and painting of buildings, facade work and industrial objects.
Max Loading Capacity 2700 kg (4.1m), 2300 kg (7.3m), 1900 kg (10.5m), 1500 kg (13.7m), 1000 kg (16.9m). Freestanding height 18-30m (full extended outriggers) & 13-18m (extended outriggers on one side).
Can be installed indoors as well as outdoors. With a transport weight up to 4000 kg and safety features including, overspeed safety brake, emergency stop and limit switches, electromagnetic brake, phase sequency relay & residual current device.
Scan Climber SC5000
Maximum mast height of 120m, with a load capacity of 7100kg and climbing rate of 10m per minute.
Single Mast:
- Maximum Height(m) : 120
- Distance between ties(m) : 9
- Max. platform length(m) : 11.84
- Platform width(m) : 1.2 + 0.9
- Climbing speed(m/min): 10
- Max. loading capacity(Kg): 1710
- Motor power(Kw): 4.1

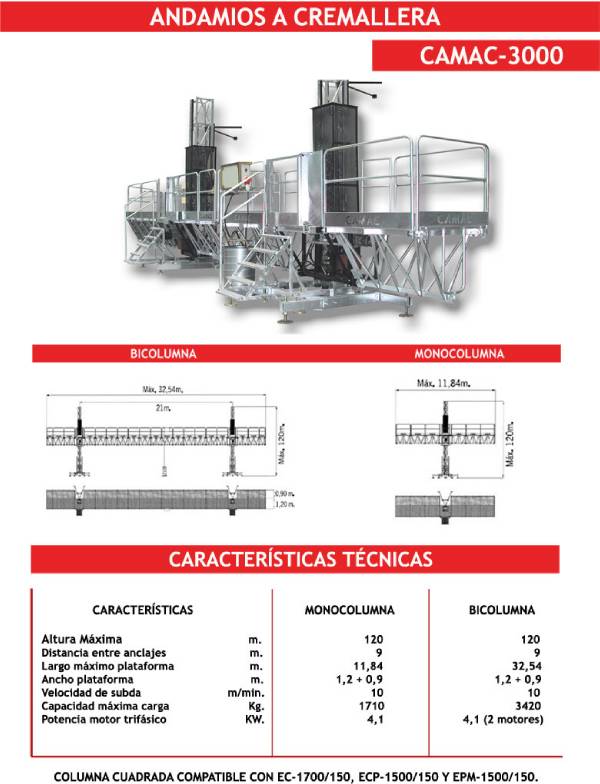

CAMAC 3000
camac 3000 | |
Cargo | Material/Personnel |
Max Load Capacity | 1710kg single / 3420kg Twin |
Lifting Height | 120m |
Lifting Speed | 10 m/min |
Power Supply | 380 V / 4.1 Kw Single / 380 V / 8.2 Kw Twin |
Max Platform Length | 11.84m Single / 32.40m Twin |
ALBA PEC 120
ALBA Pec 120 | |
Cargo | Material/Personnel |
Max Load Capacity | 1800kg single / 4000kg Twin |
Lifting Height | 120m |
Lifting Speed | 7.5 m/min / 9 m/min |
Power Supply | 10 kVa Single / 20 kVa Twin |
Max Platform Length | 9.9m Single / 32.11m Twin |
SCANCLIMBER SC4000
Scanclimber Sc4000 | |
Cargo | Material/Personnel |
Max Load Capacity | 2000kg single / 4200kg Twin |
Lifting Height | 100m |
Lifting Speed | 6 m/min |
Power Supply | 8 kVA Single / 16 kVA Twin |
Max Platform Length | 12.5m Single / 31.4m Twin |
Jaso GP40
Jaso GP40 | |
Cargo | Material/Personnel |
Max Load Capacity | 850kg single / 4550kg Twin |
Lifting Height | 150m |
Lifting Speed | 6 m/min |
Power Supply | 5.5 kVA / 10.5 kVA Single / 10,5 kVa / 20,5 kVA Twin |
Max Platform Length | 13.44m Single / 35.88m Twin |
SCANCLIMBER SC5000
Scanclimber Sc5000 | |
Cargo | Material/Personnel |
Max Load Capacity | 2700kg single / 5000kg Twin |
Lifting Height | 100m |
Lifting Speed | 7/12 m/min |
Power Supply | 8 kVA Single / 16 kVA Twin |
Max Platform Length | 16.9m Single / 40.6m Twin |
Suspended Work Platform:
Suspended work platforms are an innovative piece of equipment to allow elevated work access to a structure or a façade from the rooftop down. The platforms are mounted with a winch system on the roof to ensure the safe lifting and lowering of personnel and materials. As the platform is installed and secured on the roof it is a perfect solution for building projects that have space restrictions around the structure at ground level. The platform is highly adjustable and easily relocated to another point of the roof. As the platform is suspended from the roof it also makes it a perfect solution for irregular shaped buildings that makes regular scaffolding impossible. Suspended work platforms are a popular choice for window installation, cleaning and repairs and any other elevated work to the building façade.
Casey Group is one of the only suppliers of suspended work platforms in the Irish market.
We have a team of skilled technicians that travel nationwide to provide onsite consultation to help you make the right decision for your project. Contact us now to set up a consultation or receive a quote.
GEDA AB450
GEDA AB450 | |
Cargo | Material/Personnel |
Pulling Force | 450kg |
Lifting Height | 150m |
Lifting Speed | 8 m/min |
Power Supply | 1.4 kW / 400 V / 50 Hz / 16 A |
Max Platform Length | 14m |
GEDA AB650
GEDA AB650 | |
Cargo | Material/Personnel |
Pulling Force | 650kg |
Lifting Height | 150m |
Lifting Speed | 8 m/min |
Power Supply | 1.4 kW / 400 V / 50 Hz / 16 A |
Max Platform Length | 14m |
